1LC6

Sensibly equivalent^¶ to:

CV778 VT-178

See also:

Pentagrid Converters

Extras ▼

Sylvania Photographic Donations

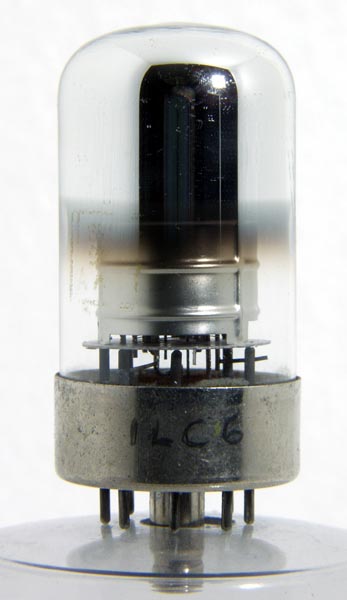

The 1LC6 is an American pentagrid converter, but one designed for dry battery operation. In the Zenith 8G005 broadcast receiver that this exhibit comes from the line up is:- 1LN5 RF amplifier, 1LC6 mixer, 1LN5 IF amplifier, 1LD5 detector and amplifier, 1LE3 phase splitter, and a pair of 1LB4s as audio output.

The wide glass tube envelope is 28 mm in diameter and, excluding the B8B base pins, is 55 mm tall.

Reference: Data-sheet. Type 1LC6 was first introduced in 1939. See also 1939 adverts.

Pin Connections

B8B	1	2	3	4	5	6	7	8
	f+	a	g2	g1	g3,g5	g4	nc	f-

Absolute Maximum Operating Conditions^¶

Heptode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra
	1.4	0.05	90	35	0	0.75	0.7	0.65M

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated January 06, 2022.
