QS92/10

Sensibly equivalent to:
CV188 CV1070

Extras ▼

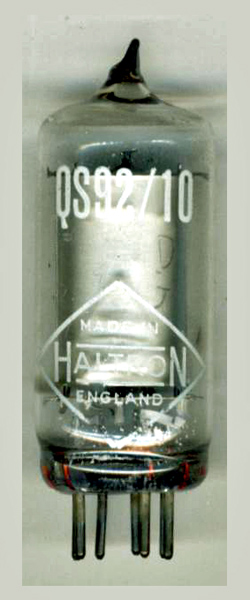

The data books give the QS92/10 as a voltage stabiliser on a B4 base. Jacob Roschy sent this picture proving that at least Haltron sold this 92 Volt stabiliser as a B7G based device. The data-sheet attached is of other voltages in this stabiliser range from M-OV.
Jacob also has supplied regulation data for a pair of QS92/10's. Click here for details.
The voltage stabilised is 92 Volts at currents up to 10 mA.
The envelope is 17 mm in diameter, and excluding the B7G base pins is 39 mm tall.
References: Data-sheet & Jacob Roschy. Type QS92/10 was first introduced in 1954. See also 1954 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
k
k
k
a
a
a
a



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
92
10.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
