EB11



Extras ▼

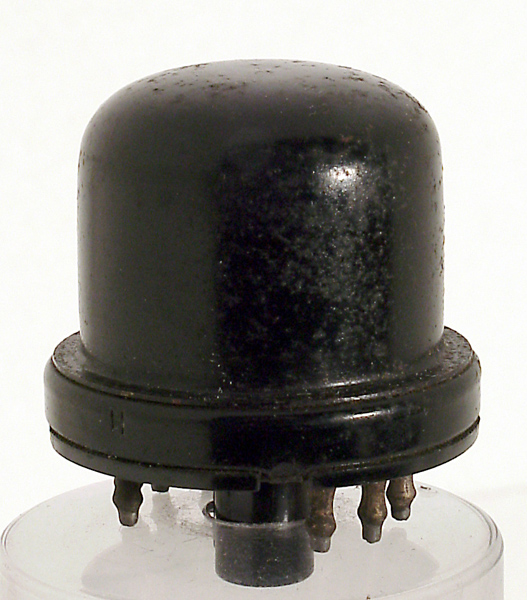

The EB11 is a double diode closeley related to the EB34 and the EB4. The design use for low capacity diodes in the late 1930s was for both television demodulation and in RADAR systems. Telefunken made valves for the German war effort.
The wide metal tube envelope is 36 mm in diameter, and excluding the Footless base pins is 34 mm tall.
Reference: Datasheet. Type EB11 was first introduced in 1938.



Pin Connections
Footless
1
2
3
4
5
6
7
8
a(2)
k(2)
k(1),M
-
h
h
-
a(1)



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.2
200
0.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 20, 2013.
