EB34

Sensibly equivalent to:
6H6GT ARDD5 CV1054 D63 OM3 VR54

Extras ▼



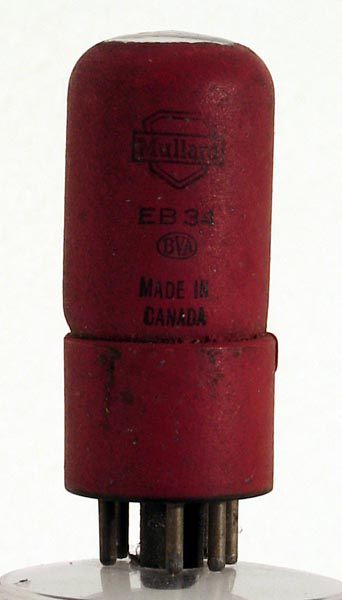

The EB34 is a pair of signal diodes in a single envelope. Each section is internally screened. In this example the once present red metallic paint has flaked off and the inner structures can be seen. Our other EB34 has the pait still intact.
The wide glass envelope is 28 mm in diameter and, excluding the IO base pins, is 62 mm tall.
References: Datasheet, 1043 & 1040. Type EB34 was first introduced in 1941.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
k(2)
a(1)
-
h
k(1)



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.2
140
0.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December01, 2012.
