41MHL

Sensibly equivalent to:
354V A30D AC/HL CV2504 D4 HLA2 MH4
See also:
Cossor 41MHL Box - Cossor Mica Bridge Mounting Advert - Cossor Mica Bridge Advert - From Triode to Double-Diode-Pentode

Extras ▼



The 41MHL is an indirectly heated triode and was suitable for detector or audio amplifier in a radio receiver. Internally the valve has both a control grid and a screen grid. The latter is internally connected to the anode by a length of coiled wire.
Our other 41MHL was made without the external metallising paint and often valves were introduced in both metallised and un-metallised versions.

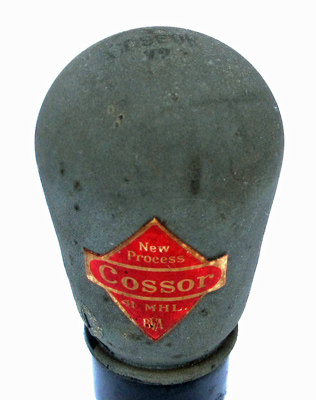

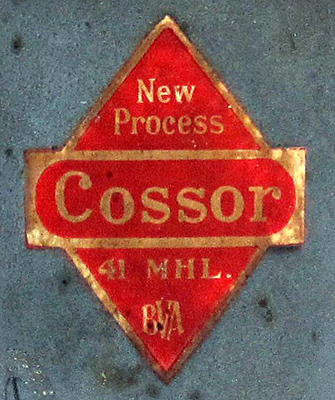

The dome has the Cossor name printed onto the zinc loaded paint.
The Cossor New Process was introduced in 1929 and this valve is probably the original fitted to the wireless set.
Thanks to Mike Edwards for the pictures and information that this valve came from a 1932 Kolster Brandes KB321 wireless set.

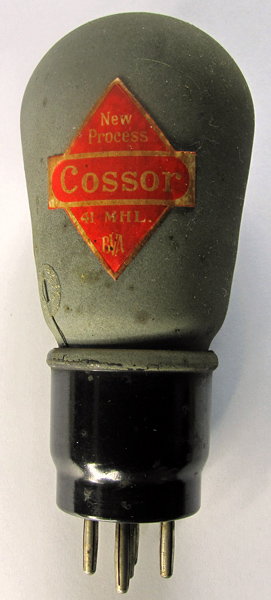

The balloon envelope is 50 mm in diameter, and excluding the B5 base pins is 106 mm tall.
References: Data-sheet, 1043, 3002 & 1040. Type 41MHL was first introduced in 1930. See also 1930 adverts.



Pin Connections
B5
1
2
3
4
5
a
g1
h
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
4.0
1.0
200
-3
4.0
11,500
4.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 04, 2023.
