4043

Sensibly equivalent to:
5876

Extras ▼



The 4043 is a UHF disc seal triode. The 4043 is a specially selected and aged 5876 made to HP specification and designed to produce 5 Watt output at 500 MHz.

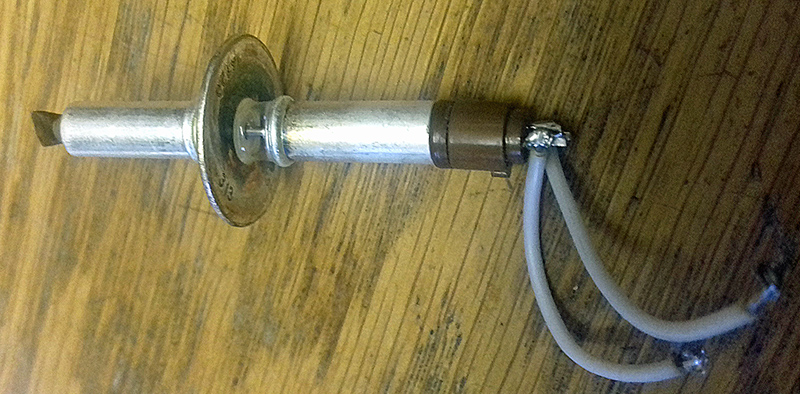

This triode is physically small, coaxial and connections are brought out along the body of the valve so as to better locate the valve within a resonant cavity. The cathode connection is made via a spring clip that fits over the metal body. In this exhibit the heater connections have had wires soldered to them rather than use the special base. The central grid ring is 20 mm in diameter.
Thanks to Nick Gregory for sending the picture.
The thin metal tube envelope is 6.3 mm in diameter and, excluding the base pins, is 54 mm tall.
References: Datasheet & 4038.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
gm
μ
6.3
0.135
300
-100
25.0
6.2
56
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 18, 2017.
shape:thin.metal.tube construction:disc.seal.(glass) type:triode age:1960.1975 base: heater:6.3v pin:
