4052A

Sensibly equivalent to:
CV1081

Extras ▼



The 4052A RF transmitting pentode was introduced in 1938. The application was in HF communications.

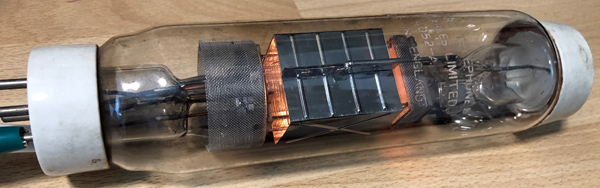

This image shows the box anode and is illuminated by the filament - thoriated tungsten.
Thanks to Mark Kelsall for sending the images.

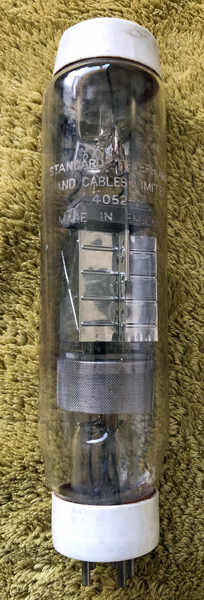

The wide glass tube envelope is 50 mm in diameter and, excluding the UX5 base pins, is 215 mm tall.
Reference: Datasheet. Type 4052A was first introduced in 1938.



Pin Connections
UX5
1
2
3
4
5
tc
f
g2
g1
g3
f
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
7.5
3.0
1,250
300
-30
43.0
15.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 11, 2020.
shape:wide.glass.tube construction:pinch type:pentode age:1930.1940 base:ux5 pins:5 pin:1.f pin:2.g2 pin:3.g1 pin:4.g3 pin:5.f pin:tc.a
