TS215

Sensibly equivalent to:
BTS215

Extras ▼



The TS215 (Previously the BTH BTS215) is a double triode. One triode is for use as a detector and the other as an audio voltage amplifier.
Brian Stanfield has a BTH VR3 radio from CA that uses the TS215.

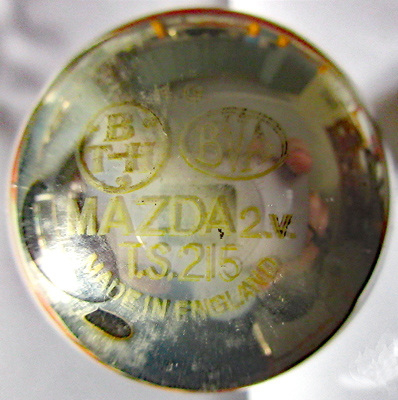

The dome with the BTH logo and the Mazda brand.
Thanks to Brian Stanfield for sending the image and information.

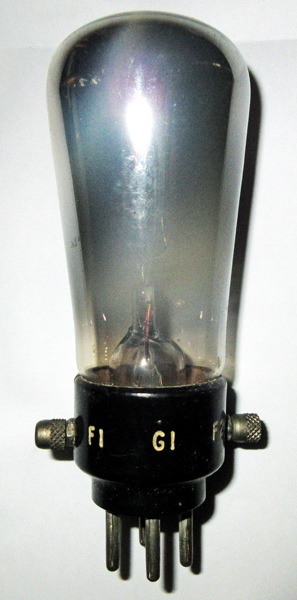

The balloon envelope is  mm in diameter and, excluding the B4 base pins, is  mm tall.
Reference: 1043. Type TS215 was first introduced in 1929.



Pin Connections
B4
1
2
3
4
sc
sc
a(2)
g1(1)
f
f
a(1)
g1(2)



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
2.0
0.15
120
-6.0
7.0
7,000
0.9



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
120
-1.0
-
100k
0.27
Updated May 26, 2020.
shape:balloon construction:pinch type:double.triode age:1920.1930 base:b4 heater:2.0v pins:4 pin:1.a pin:2.g1 pin:3.f pin:4.f pin:sc.a pin:sc.g1
