CV1203

Sensibly equivalent^¶ to:

NT1

Extras ▼

Unknown Photographic Donations

The CV1203 is a double ended directly heated transmitting triode with an anode dissipation of 150 Watts. The old service code was NT1 for Navy Transmitting 1.

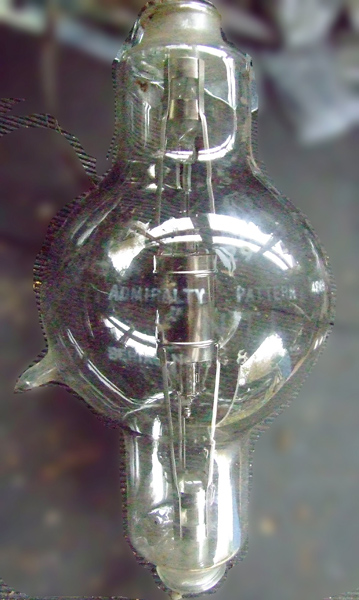

Thanks to Ben from the Military Wireless Museum for the image.

Reference: Data-sheet.

Absolute Maximum Operating Conditions^¶

Triode	Vh	Ah	Va	ra	gm	μ
	14.0	4.7	2,000	3,600	1.6	5.8

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated November 15, 2024.
