EK90

Sensibly equivalent to:
6BE6 CV453 HM04 X727 X77
See also:
Pentagrid Converters

Extras ▼



The EK90 heptode is classically used as a frequency changer in a superhet receiver. Radio and Television both use the superhet principle. To change frequency the incoming signal is mixed with a local oscillator. The electron stream is effectively switched on and off by the oscillator. In practice the process is one of producing sum and difference frequencies rather than just mixing of two signals.
To prevent the oscillator and the signal interfering in unplanned ways a screening grid keeps the circuits apart.
See also HK90 for the 12.6 Volt heater version.

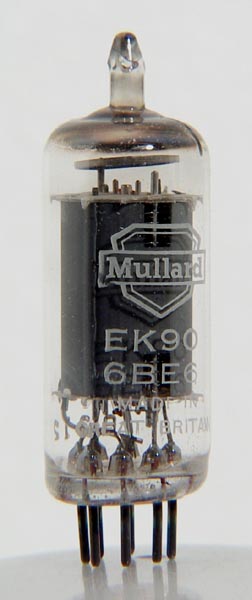

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 48 mm tall.
References: Datasheet & 1040. Type EK90 was first introduced in 1951.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g2,g4
g3



Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Vosc
6.3
0.3
250
100
-1.5
3
7.1
1M
0.475
10
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 27, 2013.
