CV132

Sensibly equivalent^¶ to:

6H1 V885 VX132

Extras ▼

Ediswan The Curzon Collection

The CV132 is the service designation of the 6H1 hexode mixer and was based on the VX132. It is designed to operate with a separate triode oscillator that injects into grid 3. The maximum design frequency is 20 MHz.

Thanks to Julien Weston for the information.

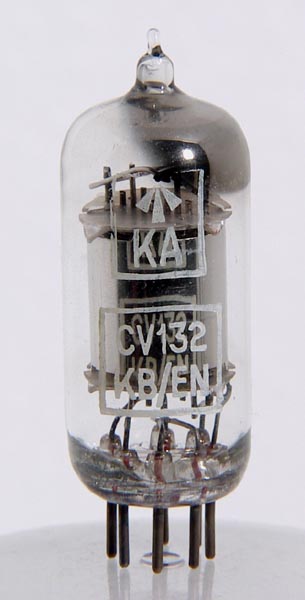

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 42 mm tall.

References: Data-sheet.

Pin Connections

B7G	1	2	3	4	5	6	7
	g1	k	h	h	a	g3	g2,g4

Absolute Maximum Operating Conditions^¶

Hexode	Vh	Ah	Va	Vs	Vg	mAa	mAs
	6.3	0.2	300	300	-2.2	2.3	2.7

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated October 02, 2013.

shape:thin.glass.tube construction:all.glass type:pentode age:1950.1960 base:b7g heater:6.3v pins:7 pin:1.g1 pin:2.k pin:3.h pin:4.h pin:5.a pin:6.g3 pin:7.g2.g4
