Z319

Sensibly equivalent^¶ to:

CV2276 VX5038

See also:

Electron Multipliers - Television RF Valve Development - Z319 Advert - GEC Wideband Valves Advert

Extras ▼

M-OV The Hampshire Collection

The Z319 is a wideband RF amplifier pentode with a dissipation of 2 Watts. Wideband amplifiers need a high gm figure and the Z319 achieves this with a single stage of electron multiplication. It is a secondary emission pentode as is the EE50 and EFP60. Devices employing electron multiplication were considered to be noisier than other devices with similar gm figures. But these devices pre-dated the frame grid construction.

The prototypes for the Z319 = CV2276 were the VX5038 and E2133.

Thanks to Roy Johnson for the information on this valve.

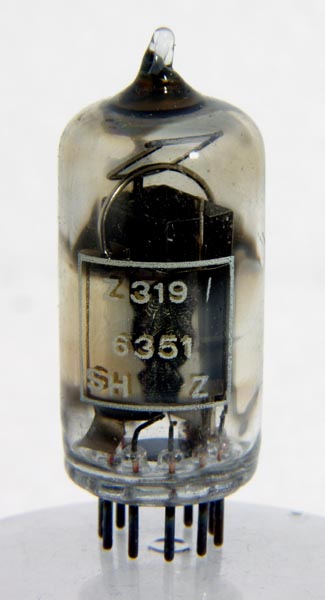

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 48 mm tall.

References: Data-sheet & Roy Johnson. Type Z319 was first introduced in 1954. See also 1954 adverts.

Pin Connections

B9A	1	2	3	4	5	6	7	8	9
	g3,s	g1	k	h	h	g3,s	a	k(2)	g2

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	gm
	6.3	0.3	500	300	19.0

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated September 06, 2019.
