N153

Sensibly equivalent to:
N309 PL83

Extras ▼

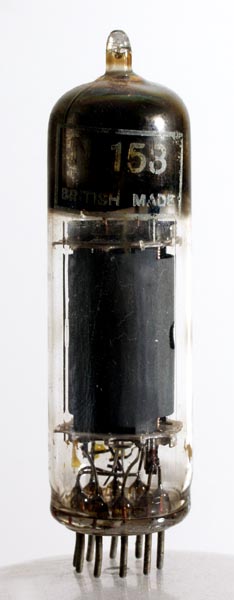

The N153 was designed as a sensitive video output valve for television receivers and is the equivalent to the Mullard PL83.
The N153 is listed in 1040 as an equivalent of the Pl83 but no specific data is presented.
The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins, is 68 mm tall.
References: Data-sheet & 1040. Type N153 was first introduced in 1951. See also 1951 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g2
g1
k
h
h
g3
a
s
nc



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
15
0.3
170
170
-2.3
36.0
5.0
0.1M
10.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
