CV4116

Sensibly equivalent to:
CV4071 UR45

Extras ▼



The CV4116 is an EHT rectifier on an IO base, the average current is 50 mA and the peak is 3 A. The CV specification sheet indicates that the commercial prototype was the UR45.
The CV4071 has a glass envelope and slightly different ratings.

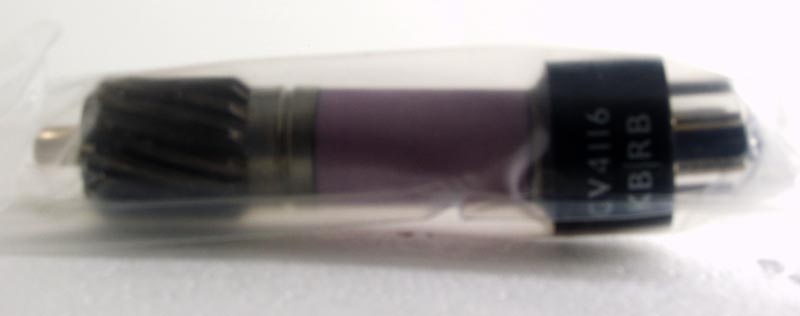

This CV4116 is new and in its original polythene bag. This then fits into an expanded polystyrene moulded holder within a cardboard box.
The wide ceramic tube envelope is 25 mm in diameter, and excluding the IO base pins, is 96 mm tall.
References: Datasheet.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
ic
h
ic
ic
ic
ic
-
h,k
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
4.0
1.5
6,000
50
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 16, 2013.
construction:disc.seal.(ceramic) type:rectifier.hw age:1960.1975 base:io heater:4.0v pins:8 pin:1.ic pin:2.h pin:3.ic pin:4.ic pin:5.ic pin:6.ic pin:7.- pin:8.h.k pin:tc.a
