PCF806


See also:
Valves and their Habits - New Mullard Television Valves

Extras ▼

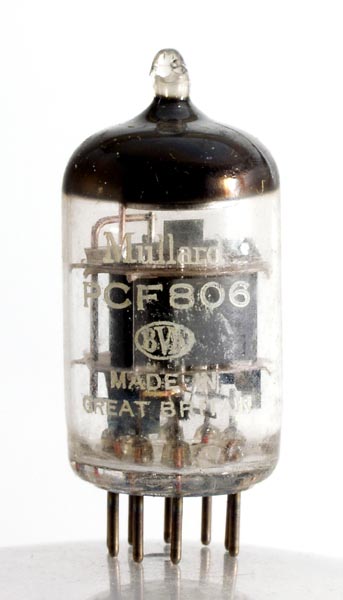

The PCF806 is a triode pentode frequency changer for VHF television receivers and frequencies up to 220 MHz. The local oscillator is based on the triode and the mixer is the pentode.
Mullard describe the PCF806 as: a triode frame-grid pentode.
Within the envelope both sections have the same vertical dimension but the triode is much smaller from front to back than the pentode.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 40 mm tall.
References: Data-sheet, Data & 1040.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k,g3,s
g1
k,g3,s
h
h
a
g2
a(t)
g1(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
8.0
0.3
170
150
-1.2
10
3.3
0.35M
12



Absolute Maximum Operating Conditions
Triode
Va
mAa
100
14
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 19, 2023.
