CV345

Sensibly equivalent^¶ to:

12E1 VX6044

See also:

Series Pass Valves

Extras ▼

Unknown The Hampshire Collection Other CV345 exhibits

CV345 is a power output valve designed for the demanding use as a series pass valve in stabilised power supplies. The prototype was the VX6044.

The heavy demands placed on valves used as control elements in regulator circuits makes it vital that the ratings are not exceeded.

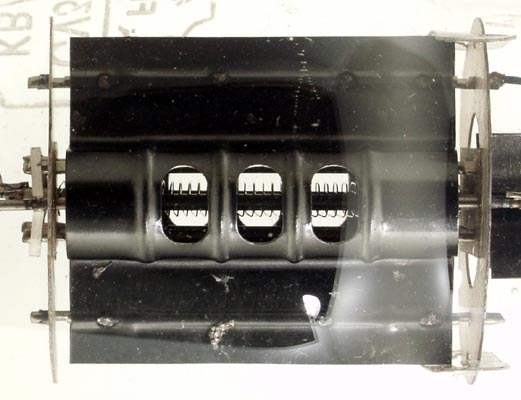

From the side of the anode we can see the cathode tube and grids.

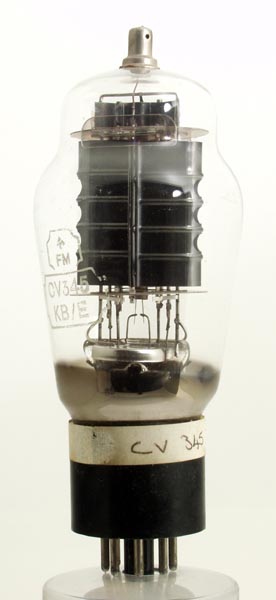

The classic envelope is 50 mm in diameter, and excluding the IO base pins, is 128 mm tall.

References: Data-sheet & ¹⁰⁴⁰. Type CV345 was first introduced in 1946. See also 1946 adverts.

Pin Connections

IO	1	2	3	4	5	6	7	8	tc
	nc	h	nc	g2	g1	nc	h	k	a

Absolute Maximum Operating Conditions^¶

Beam Tetrode	Vh	Ah	Va	Vs
	6.3	1.6	800	300

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated January 03, 2022.
