CV54

Sensibly equivalent to:
V960
See also:
Rectifiers for Pulse Modulators

Extras ▼

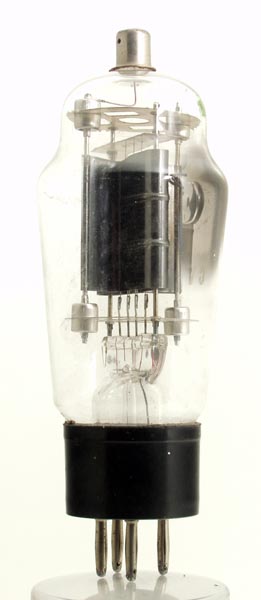

We CV54 is a half wave rectifier with the anode brought out to the top cap. The filament is coated wire and passes vertically through the anode cavity six times. The interesting feature is the metal fixings of the anode support rods to the thick mica insulators.
The reservoir capacitor is not to exceed 1 μF and a minimum of 2 kΩ of series resistance is required to limit peak cathode current to 400 mA.
The anode has rounded ends and measures 6 x 34 x 32 mm and has side cooling flanges.
The classic envelope is 47 mm in diameter and excluding the B4 base pins the valve is 123 mm high.
Reference: Datasheet.



Pin Connections
B4
1
2
3
4
tc
-
-
f
f
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
4.0
1.3
2,500
60
Thanks to Frank Philipse for supplying the above PDF datasheet.
