The CV310 is described as a Strobotron and looks similar to the GN10 thyratron. The prototype was the NHP1.
The KB/R identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the R identifies the maker as Ferranti, Moston.

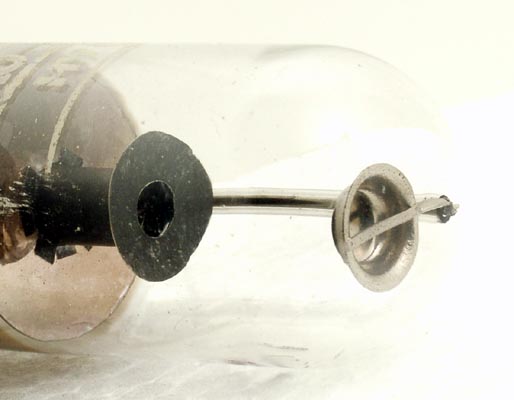

Seen from the anode end, the long discharge path can be seen.
Neon filled 'Strobotron' tubes produced short duration high intensity light flashes from the discharge column. When used in a parabolic reflector the flash would clearly be visible in daylight.

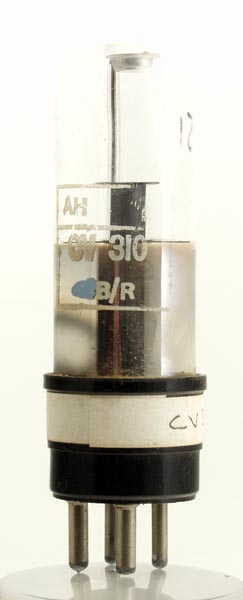

The wide glass tube envelope is 28 mm in diameter and, excluding the UX4 base pins, is 93 mm tall.
Reference: Data-sheet. Type CV310 was first introduced in 1950. See also 1950 adverts.



Pin Connections
UX4
1
2
3
4
tc
g2
nc
g1
k
a



Absolute Maximum Operating Conditions
General Notes
Va
500
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 23, 2024.
