CV287

Sensibly equivalent to:
150A2 150B3 GTR150M/S QS150/15 SM150 V987B

Extras ▼

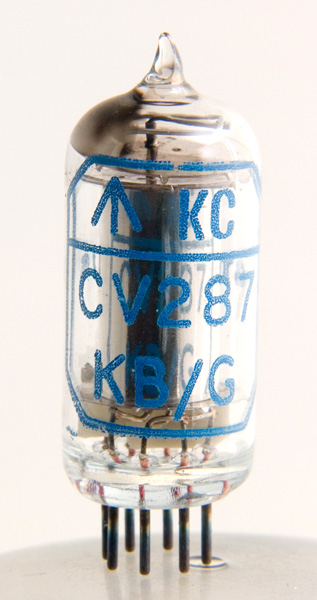

The CV287 is a miniature voltage stabiliser and its direct commercial equivalent is the QS150/15.
The striking Voltage is 170 and for burning currents of 2 - 10 mA the regulation is 5 Volts. The electrode at pin 4 is the priming anode and it should draw no more than 500 μA.
The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 45 mm tall.
References: Datasheet. Type CV287 was first introduced in 1954.



Pin Connections
B7G
1
2
3
4
5
6
7
-
k
-
pa
-
a
-



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
150
2-10
Thanks to Frank Philipse for supplying the above PDF datasheet.
