QS150/15

Sensibly equivalent to:
150B3 CV287 GTR150M/S
See also:
CV287 Priming Anode

Extras ▼

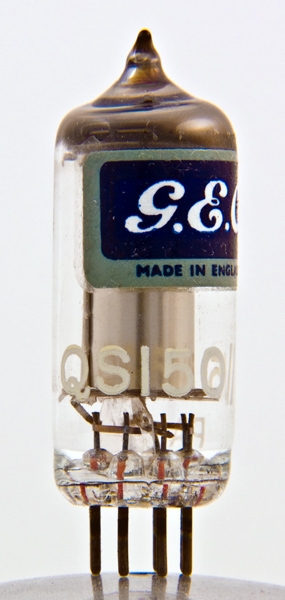

The QS150/15 is a miniature voltage stabiliser.
The striking voltage is 170 and for burning currents of 2 - 10 mA the regulation is 5 Volts. The electrode at pin 4 is the priming anode and it should draw no more than 500 μA.
The bright anode is continuous and therefore the internal structure is masked.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 46 mm tall.
Reference: Data-sheet. Type QS150/15 was first introduced in 1954. See also 1954 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
k
k
k
pa
a
a
a



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
150
2-10
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December02, 2019.
