CV4068

Sensibly equivalent to:
13D3 6158 CV2212 VX7124

Extras ▼



The CV4068 is a double triode. Its commercial equivalent is the 6158 which is the special quality version of the 13D3.
The 6158 was designed to operate as a Class B push-pull audio amplifier. The only Brimar manual we have that lists the 6158 is from 1961. We believe that this Type was issued in around 1960.

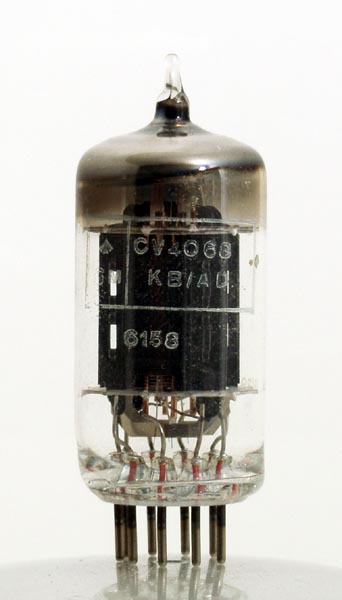

The KB/AD identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the AD identifies the maker as Brimar - Thorn-AEI , Rochester.
The side view shows the separate electrode systems.
The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins, is 48 mm tall.
References: Data-sheet, 1040 & 4062. Type CV4068 was first introduced in 1960. See also 1960 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
hct



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
6.3
0.6
250
-4.6
6.0
14,000
2.3
32
Thanks to Frank Philipse for supplying the above PDF datasheet.
