CV492

Sensibly equivalent to:
12AX7 B339 CV4004 E2164 ECC83

Extras ▼



The CV492 is the ECC83 high impedance amplifier triode. The design has a high amplification factor of 100. The envelope carries the CV designation and the American Type designation of 12AX7 indicating direct equivalence.

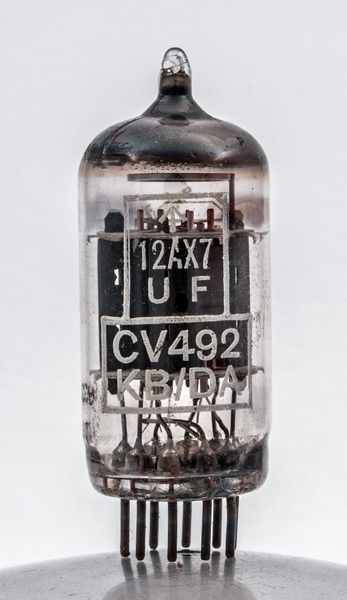

The KB/DA identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the DA identifies the maker as Mullard Radio Valve Co., Blackburn.

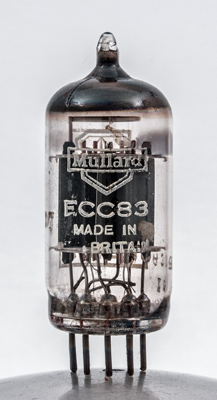

The other side of the glass shows that this is a standard production Mullard ECC83.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 48 mm tall.
References: Data-sheet, 3002 & 1040. Type CV492 was first introduced in 1947. See also 1947 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
hct



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-2
1.2
62.5K
1.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
