EF183

Sensibly equivalent to:
6EH7 6F29 CV5831
See also:
Valves and their Habits - Frame Grid Valves

Extras ▼



The EF183 is a high gain variable μ RF amplifier pentode. It is a late 1950s design and superseded the EF85. The EF184 was the straight version of the design and replaced the EF80. All four valves have the same pin connections.
The EF183 is a frame-grid variable-mu RF pentode for use as an automatic gain controlled IF amplifier in television receivers. The heater is suitable for series or parallel operation by AC or DC.
The valve performance figures are given at 40 MHz and the normal TV IF frequency was around 33 MHz.

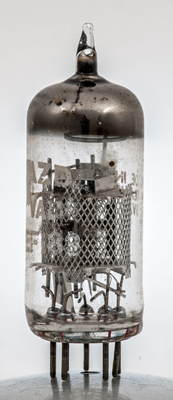

Through the expanded metal screen the anode can be seen as two side plates joined by a strap. The inner two grids are close to the cathode and the suppressor grid is about half way to the anode.
The suppressor grid is helical whereas the inner grids pass flat across the cathode.

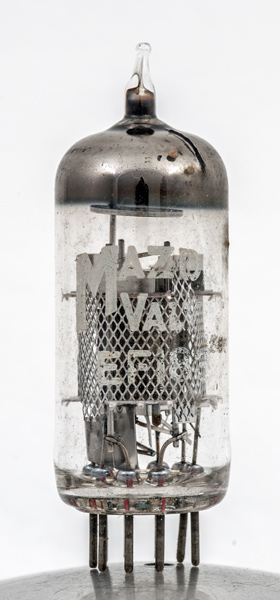

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 55 mm tall.
References: Datasheet & 1040. Type EF183 was first introduced in 1959.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k
g1
k
h
h
s
a
g2
g3



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
200
90
-2
12
4.5
0.5M
12.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
