CV1120

Sensibly equivalent to:
NU33 SU2150A VU120

Extras ▼

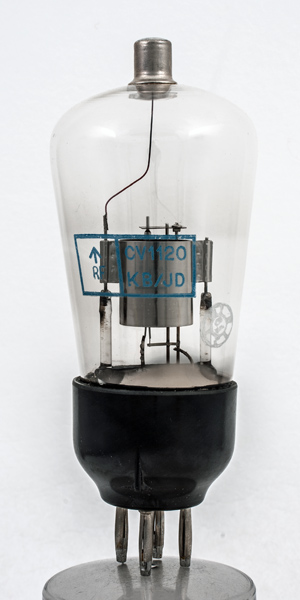

The CV1120 is a UK government procurement specification that was made by various suppliers. The commercial equivalent was the SU2150A from Cossor and this hand assembled saddle construction proved the most reliable in service. Other makers used their own manufacturing techniques and this exhibit was probably made by M-OV.
The maximum reservoir capacitor is 0.25 µF, and the minimum series resistance is 10 kOhms.

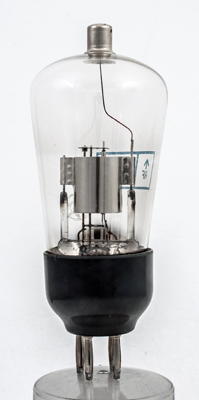

The cylindrical anode is supported on glass rods fixed in the pinch.

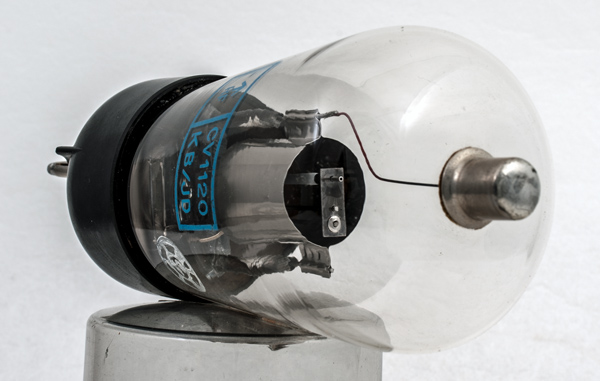

The anode fixing flanges and top cap connection.

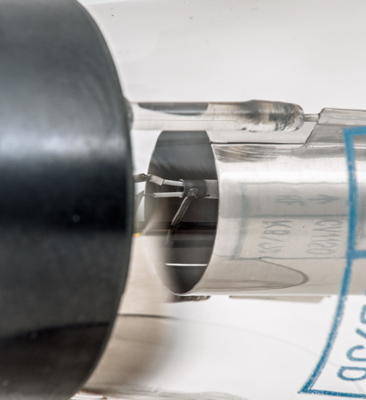

The cathode tube and a second support pass through the anode and as a consequence the cathode is not central.
The lower end of the cathode together with the insulated heater.
The classic envelope is 47 mm in diameter at its widest and excluding the B4 base pins the valve is 111 mm high.
References: Datasheet, 1040 & 1043.



Pin Connections
B4
1
2
3
4
tc
-
-
h,k
h
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
2.0
1.5
5000
10
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 03, 2018.
shape:classic construction:pinch type:rectifier.hw age:1930.1940 base:b4 heater:2.0v pins:4 pin:1.- pin:2.- pin:3.h.k pin:4.h pin:tc.a
