CV1120

Sensibly equivalent to:
NU33 SU2150A VU120

Extras ▼



The CV1120 is an EHT half wave rectifier with a PIV rating of 14 kV. The CV valves were produced to a specification and made by more than one company.
The Cossor hand made SU2150A was the valve that best suited the design applications and this exhibit was made by Cossor.

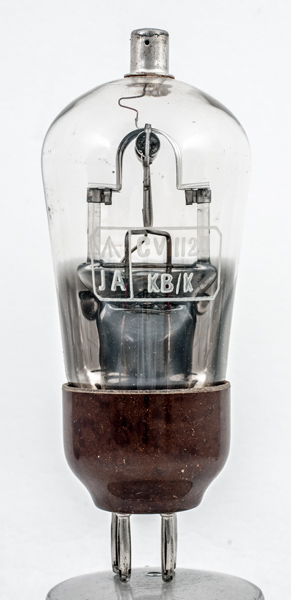

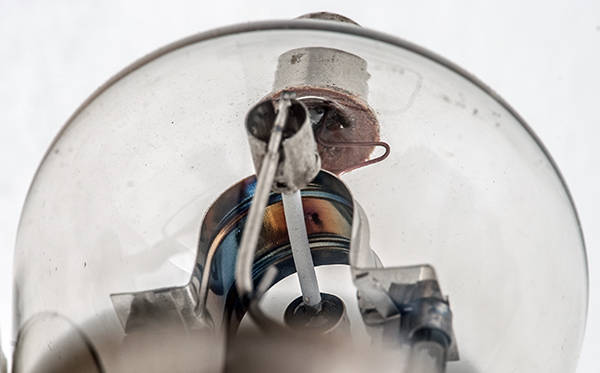

The anode connects to the top cap but is supported on thin glass rods rising from the pinch. The ribs are to add mechanical strength to the thin nickel sheet that the anode is pressed from.
The rod cathode is oxide coated.

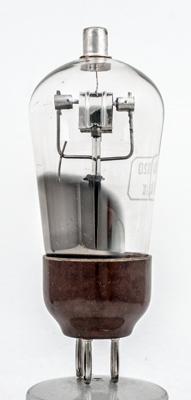

The balloon envelope is 50 mm in diameter, and excluding the B4 base pins is 112 mm tall.
References: Datasheet, 1040 & 1043.



Pin Connections
B4
1
2
3
4
tc
-
-
h,k
h
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
2.0
1.5
5000
10
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 25, 2019.
shape:balloon construction:pinch type:rectifier.hw age:1930.1940 base:b4 heater:2.0v pins:4 pin:1.- pin:2.- pin:3.h.k pin:4.h pin:tc.a
