30P12

Sensibly equivalent to:
12FB5 N369 PL801
See also:
Valves and their Habits

Extras ▼



The 30P12 beam tetrode was designed as a single ended audio amplifier output valve for television receiver use or as a TV frame scan output valve.
To operate successfully on the low anode voltage available in a TV receiver the valve has to operate at higher current to achieve the target output power of around 2 Watts.
The copper supports of the control grid are surmounted by a sizeable heat radiating fin. The cathode tube is rectangular.

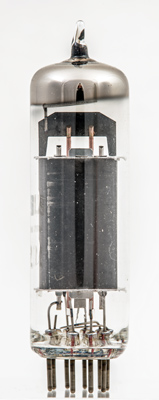

Looking along the grid axis, the beam plate can be seen through the holes in the anode wall.

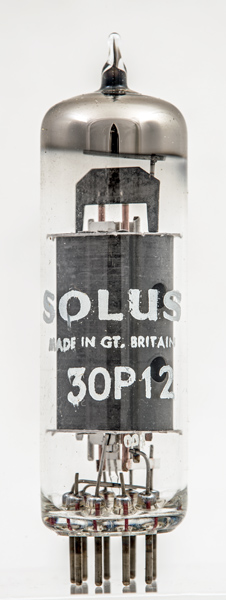

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 68 mm tall.
References: Data-sheet & 1040 Type 30P12 was first introduced in 1958.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
ic
g1
k,g3
h
h
ic
a
ic
g2



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
Pout
D
12.6
0.3
170
180
-10.3
31
7.3
6.7
2.25
7%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 24, 2021.
