CV2101Sensibly equivalent¶ to:CV2371 DF72
|
|
|

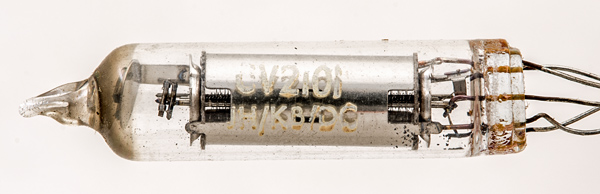

The CV2101 is a sub-miniature battery RF pentode with flying leads. The commercial equivalent is the DF72.

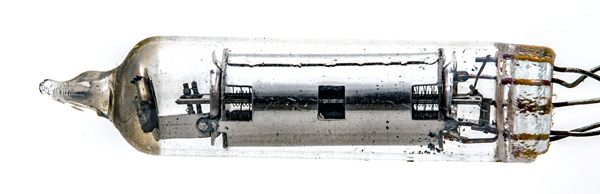

The control grid passes flat across the filament the other two grids are helical.The KB/DC identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the DC identifies the maker as Mullard Radio Valve Co., Whyteleafe.The thin glass tube envelope is 9 mm in diameter and, excluding the B8D base wires, is 39 mm tall.Reference: Data-sheet. Type CV2101 was first introduced in 1956. See also 1956 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |  ic | g1 | nc | f- | f+,g3 | nc | a | g2 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | gm |
| 1.25 | 0.025 | 100 | 100 | 0 | 2.0 | 0.55 | 1.0 |
|
