The CV2102 is a battery sub-miniature output pentode with flying leads. The commercial equivalent is the DL75.

The data-sheet gives an output power of 50 mW.

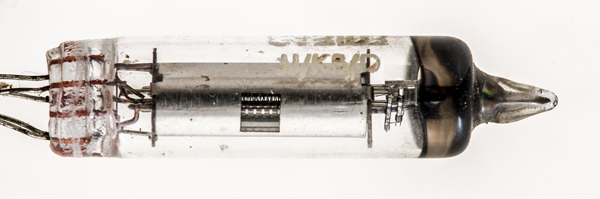

The wire grids can be seen through the hole in the anode.

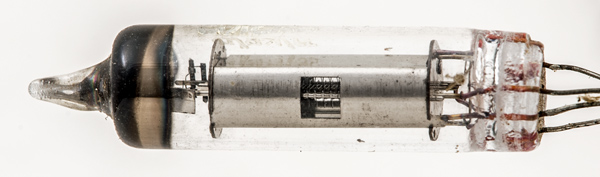

Here the control grid can be seen passing flat across the filament.

The thin glass tube envelope is 9 mm in diameter and, excluding the B8D base wires, is 39 mm tall.

Reference: Data-sheet. Type CV2102 was first introduced in 1951. See also 1951 adverts.

Pin Connections

Absolute Maximum Operating Conditions^¶

Thanks to Frank Philipse for supplying the above PDF datasheet.
