DET25

Sensibly equivalent to:
AT35 CV1025 VT25
See also:
The VT25

Extras ▼

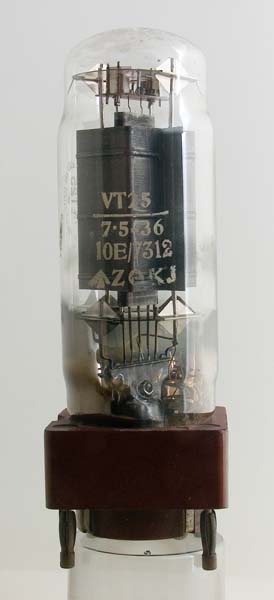

The DET25 transmitting triode has a large square four pin base as can be seen from the picture it is directly equivalent to CV1025. The anode box is quite large and blackened to radiate heat more effectively.
Operating frequency would be in the HF range and probably the output power was of the order of 36 Watts.

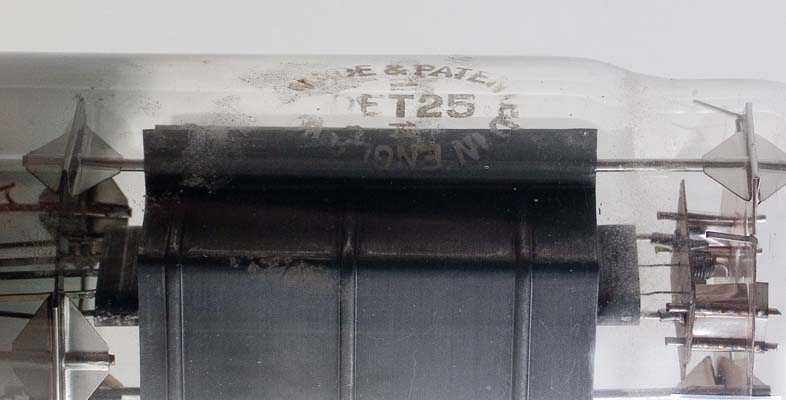

The electrode assembly can be seen in this picture. The filament is made of tape and is formed into a double inverted V. The tensioning springs can be seen to the right hand side.
Also in this picture the etched type description is typically of M-OV pattern and thus we can be sure of the manufacturer.
The wide glass tube envelope is 51 mm in diameter and, excluding the L4 base pins, is 150 mm tall.
Reference: Datasheet & 1005.



Pin Connections
L4
1
2
3
4
a
f
f
g1



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
7.5
1.28
1200
-
80.0
3600
2.1
11
Thanks to Frank Philipse for supplying the above PDF datasheet.
