304

Sensibly equivalent to:
CV1202 NS5
See also:
CV1202 short entry

Extras ▼

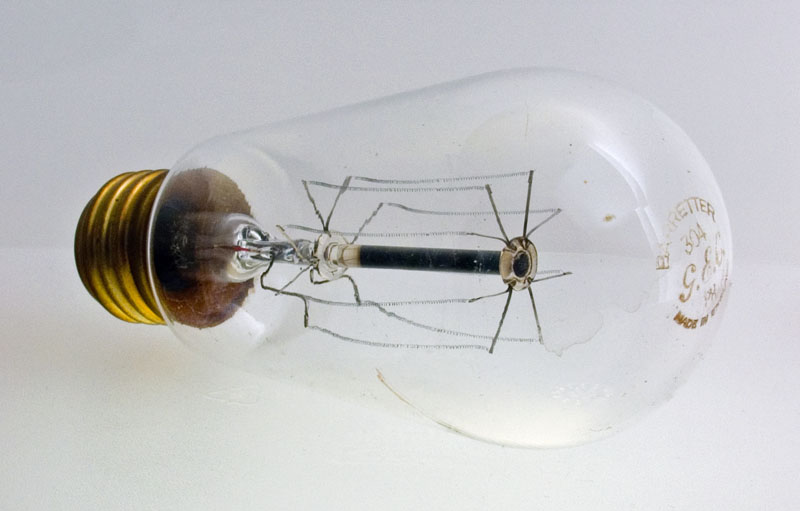

The GEC 304 Barretter is a current stabilising device for controlling the current in series heater chains of AC/DC mains equipment. It acts a ballast resistor that compensates for increased voltage by increasing resistance and therefore drops a greater voltage across itself.
The Barretter uses iron wire and in this device the current is stabilised at 300 mA. The voltage dropped by the tube is 95 to 165 volts.
The balloon envelope is 54 mm in diameter and, including the Edison Screw base is 121 mm tall.
References: Datasheet & 1043. Type 304 was first introduced in 1935.



Absolute Maximum Operating Conditions
Stabiliser
mAa
300
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 09, 2015.
