DK96

Sensibly equivalent to:
1AB6 1C3 X25
See also:
Pentagrid Converters

Extras ▼

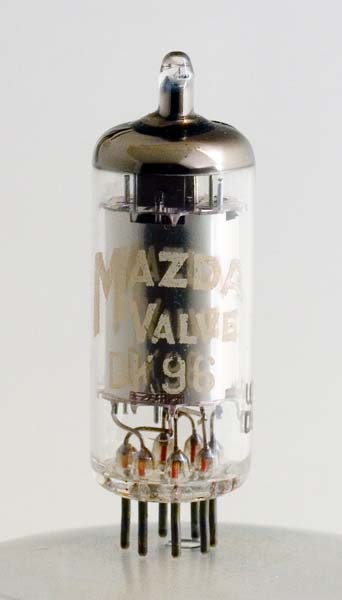

This DK96 exhibit is from Mazda and the envelope is labelled as foreign made.
From the early 1960s battery valve radios lost out to the imported transistor radio and one way to compete was to produce components in cheaper locations.
The DK96 dry battery frequency changer is from the later range of very low filament consumption valves.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 47 mm tall.
References: Datasheet & 1040. Type DK96 was first introduced in 1953.



Pin Connections
B7G
1
2
3
4
5
6
7
f-
a
g2
g1
g4
g3
f+,g5



Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
1.4
0.025
85
68
0
0.6
0.14
0.8M
0.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 26, 2013.
