CV5112

Sensibly equivalent to:
3A/167M

Extras ▼

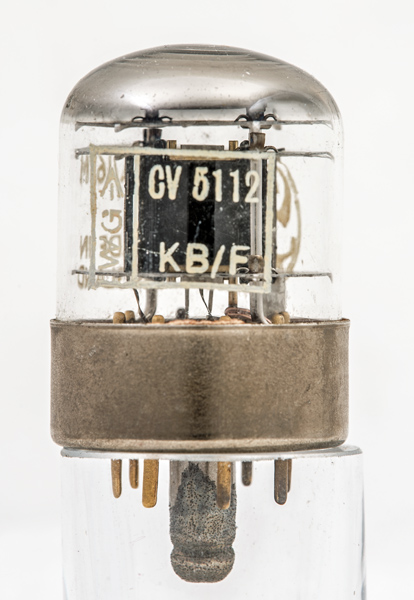

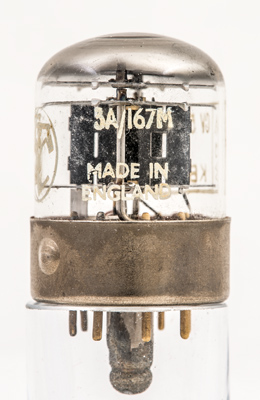

The CV5112 is a wide band repeater triode.
See 3A/167M for details.

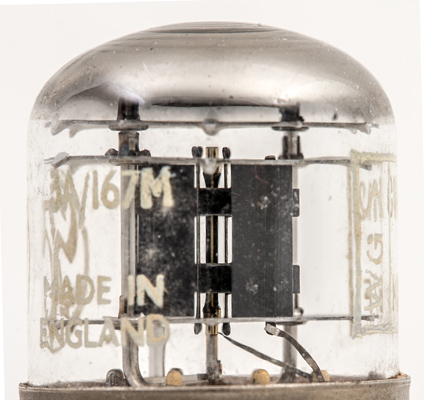

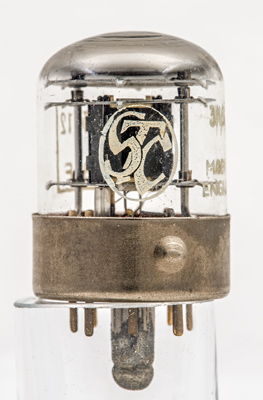

The wide glass tube envelope is 28 mm in diameter, and excluding the B8B base pins is 36 mm tall.
References: Datasheet & 1040.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
ic
-
a
k
ic
g1
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
Pdiss
6.3
0.45
350
-
45.0
1,000
47
40
7W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 16, 2013.
shape:wide.glass.tube construction:all.glass type:triode age:1960.1975 base:b8b heater:6.3v pins:8 pin:1.h pin:2.ic pin:3.- pin:4.a pin:5.k pin:6.ic pin:7.g1 pin:8.h
