6AB8

Sensibly equivalent to:
63TP ECL80 LN152

Extras ▼



The 6AB8 is a triode, output pentode primarily designed for use in television receivers (VHF 405 line models) with the triode as a frame blocking oscillator and the pentode as a frame output valve. Other applications include the use of the triode as a line blocking oscillator, AF voltage amplifier or in multivibrator circuits and the operation of the pentode as an audio output valve or a synchronising pulse separator.

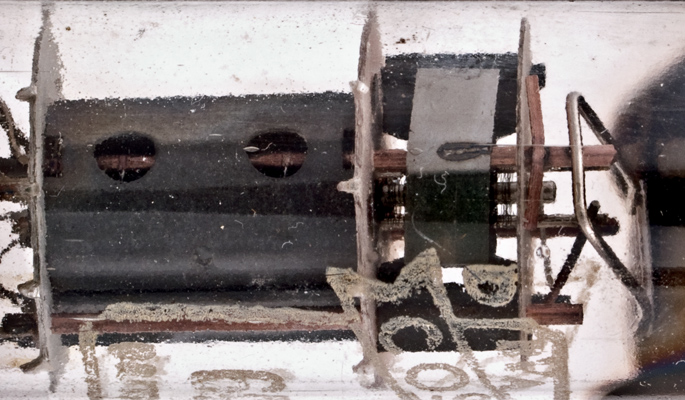

The lower electrode structure is the pentode, the triode is the small structure at the top of the valve, seen here on the right. The heater at 6.3 Volts and 300 mA and is designed for equipment with mains transformers of for equipment, such as domestic televisions, heater chains across the mains.

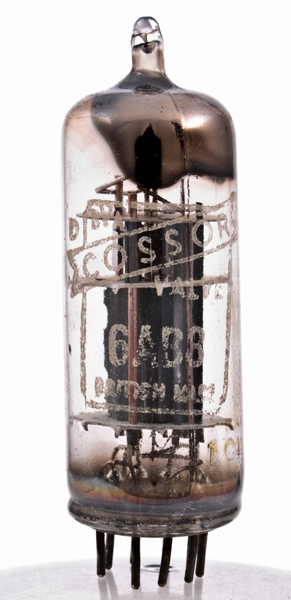

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 58 mm tall.
References: Datasheet & 1040. Type 6AB8 was first introduced in 1950.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1(t)
k,s
h
h
a
g3
g2
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
170
170
-6.7
15.0
2.8
150k
3.2



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
100
-2.3
4.0
12,500k
1.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 28, 2013.
