LP2

Sensibly equivalent to:
220PA 230C AR6 CV548 CV1162 CV1166 CV1304 NR42 P12-250 VR22
See also:
Osram B21, L21 & LP2 Advert - Osram S21 S22 H2 HL2 LP2 P2 & PT2 Advert - CV1166 short entry

Extras ▼



The LP2 battery triode was a popular design and very similar valves were produced by several companies. As an audio output valve it produced 0.18 Watts. The 2.0 V filament was designed to be supplied from a single lead-acid accumulator.
See also LP2 for the later classic enveloped version.
The anode is formed from thin sheet nickel. Unlike our other Osram LP2 the anode is inclined and no mica supports are employed. This is an early version of the design.

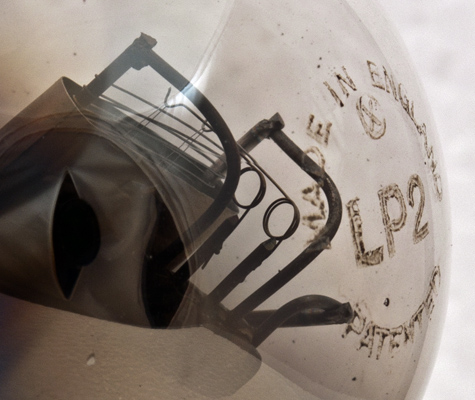

The LP2 is etched into the dome. The filament tension springs are fitted into a glass rod as are the grid supports. The filament is a pair of inverted V's.

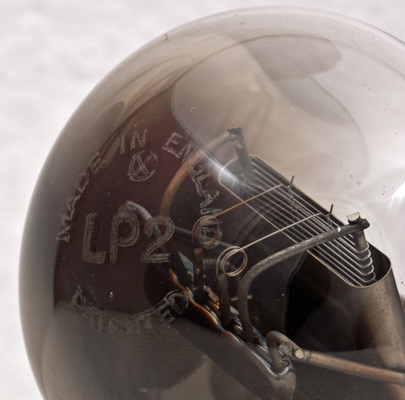

Another view of the lettering.

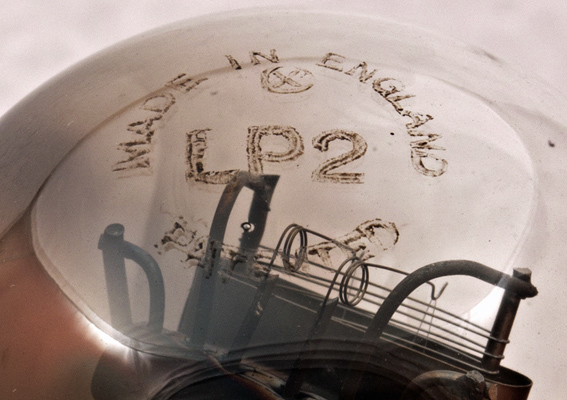

The detail of the formation of the lettering can be seen in this enhanced image. To the naked eye the etching appears as a uniform grey.

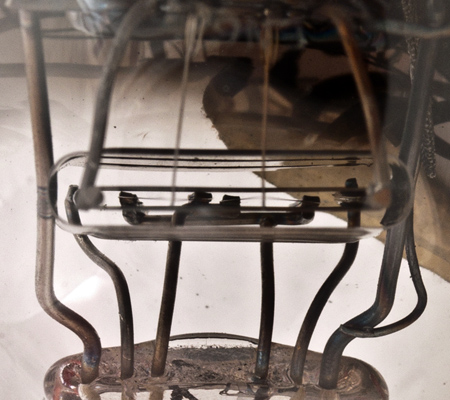

This photograph was taken looking straight down the length of the anode. The two filament wires are held in folded supports and are connected in parallel.

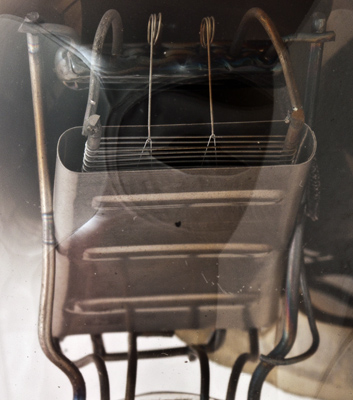

The bright nickel anode with pressed ridges to give the thin sheet rigidity. The filament can be seen to be oxide coated.

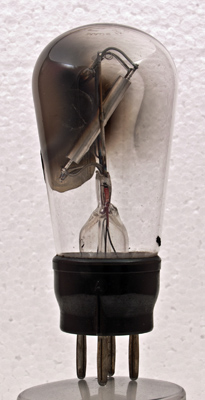

The balloon envelope is 44 mm in diameter and, excluding the B4 base pins, is 92 mm tall.
References: Datasheet, 1040 & 1043. Type LP2 was first introduced in 1930.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
2.0
0.2
150
-4.5
10.0
4000
4.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 04, 2015.
