25Z4G

Sensibly equivalent^¶ to:

U31

See also:

Brimar 1D6 & 25Z4G Advert

Extras ▼

Brimar Valve Donation by Peter Bates (GM4BYF) Other 25Z4G exhibits

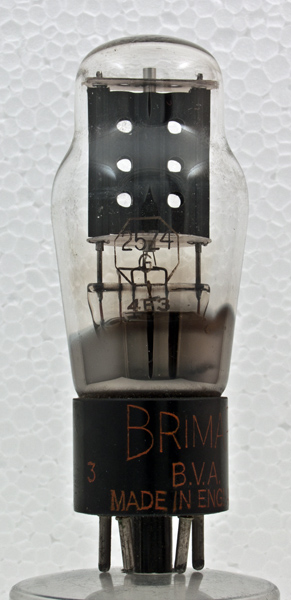

The 25Z4G half wave rectifier was designed for series heater use.

The maximum reservoir capacitor specified is 32 µF and the minimum effective series resistance has to be 50 Ohms.

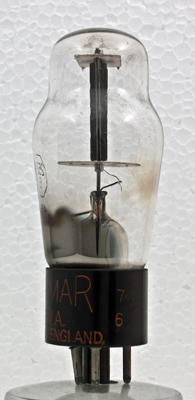

The anode is much wider than the from to back dimension.

The pinch and lower electrodes. The anode has push fit retainers on the support either side of the mica.

The classic envelope is 38 mm in diameter, and excluding the IO base pins, is 91 mm tall.

References: Data-sheet, ¹⁰⁴⁰ & ¹⁰⁴³. Type 25Z4G was first introduced in 1939. See also 1939 adverts.

Pin Connections

IO	1	2	3	4	5	6	7	8
	ic	h	nc	nc	a	nc	h	k

Absolute Maximum Operating Conditions^¶

Rectifier	Vh	Ah	Va	mAs
	25	0.3	250	100

Thanks to Frank Philipse for supplying the above PDF datasheet.
