NR47

Sensibly equivalent to:
CV1040 DO24 PX25 VR40
See also:
Valves in PA Equipment - CV1040 short entry

Extras ▼

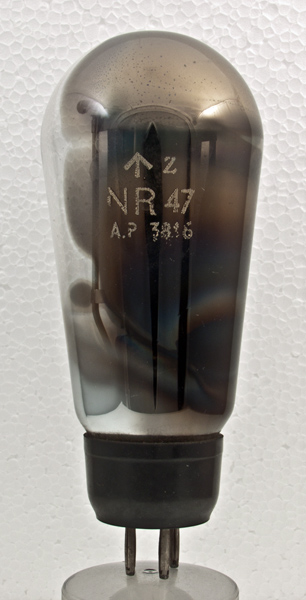

The NR47 is the UK Navy version of the classic directly heated 25 Watt anode dissipation audio power triode PX25 designed by M-OV.

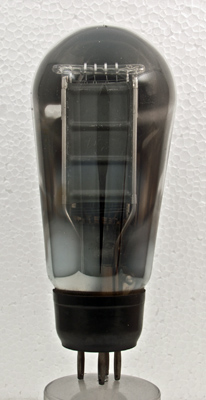

The inside of the envelope is blackened. The filament is intact but at 4.0 V and 2.6 Amps gets hot but does not glow. Also at 6.0V it still does not glow but the envelope gets too hot to hold.

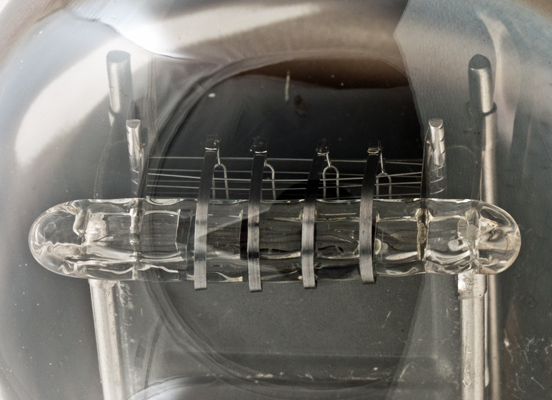

The tops of the filament loops with tension springs held in a glass rod that is itself fixed to the anode struts.

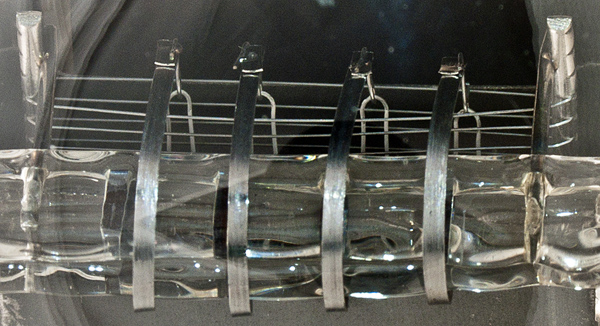

In close-up the formation of the tension springs can be seen. Unlike NR47, where the spring is formed into the hook for the filament, here the spring tip is folded and holds an S shaped wire hook. It is not clear how the hook attaches to the spring but it is probably spot welded.
The balloon envelope is 65 mm in diameter, and excluding the B4 base pins is 140 mm tall.
References: Datasheet, 1005 & 1043.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
Pdiss
D
4.0
2.0
500
-54
82
26
4%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 03, 2015.
