PCL82

Sensibly equivalent to:
16A8 30PL12
See also:
Valves and their Habits

Extras ▼



The PCL82 triode pentode is typical of valve television receivers audio output stages.
The double valve enabled the demodulated audio signal to be amplified and applied to the speaker by using the minimum number of components and printed circuit board space.

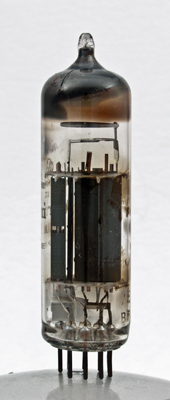

The triode is seen on the left with the larger output section on the right.
See also PCL82 for a typical application circuit.

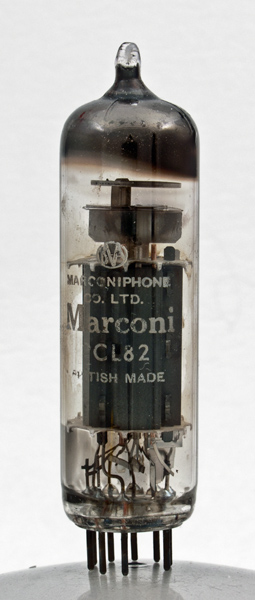

The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins it is 70 mm tall.
References: Datasheet & 1040. Type PCL82 was first introduced in 1955.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g1(t)
k,g3,s
g1
h
h
a
g2
k(t)
a(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pdiss
Pout
D
16
0.3
170
170
-11.5
41
7.5
16k
7.5
7.0W
3.3W
10%
Thanks to Frank Philipse for supplying the above PDF datasheet.
