EBC80

Sensibly equivalent to:
6BD7 6BD7A 6LD13 EBC81

Extras ▼

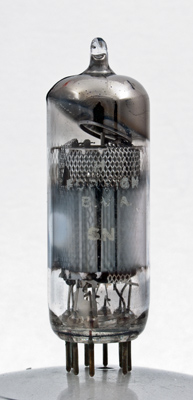

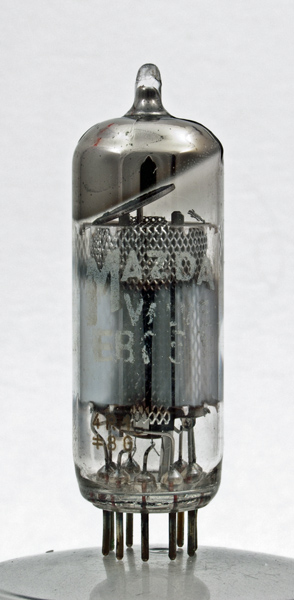

The EBC80 is a double diode triode with the triode designed for audio amplification. The diodes share the same cathode as the triode. The literature refers only to the EBC81 and thus we may conclude that the upgrade happened early in the life of this valve design.
The valve is marked Foreign and shows how manufacture became uneconomic in the UK.
The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins is 59 mm tall.
References: Datasheet & 1040. Type EBC80 was first introduced in 1954.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1
k
h
h
a(d1)
s
a(d2)
ic



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.23
250
-3.0
1.0
58,000
1.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 20, 2014.
