5Y3GT

Sensibly equivalent to:
5Y3GT/G CV1856 U50 VT-197A

Extras ▼

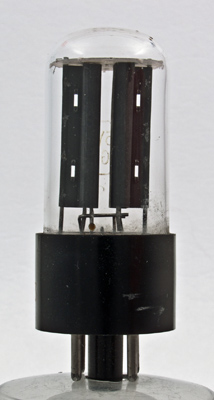

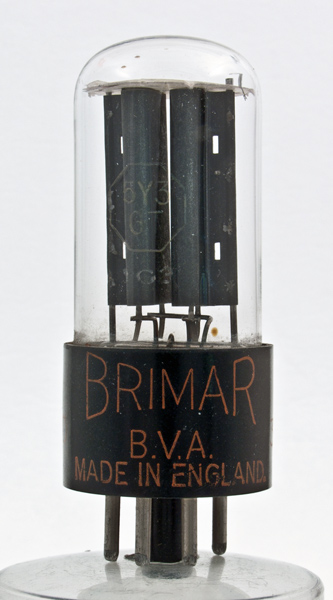

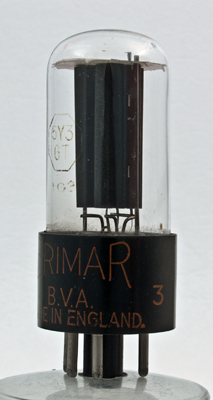

The 5Y3GT is a directly heated full wave rectifier, with inverted v's of coated tape as filaments.
The maximum reservoir capacitance is 32 µF and minimum series resistance is 100 Ω.
The anode is pressed from a single sheet and stitched around the support.
The anodes are mounted as mirror images of one another.
The wide glass tube envelope is 28 mm in diameter, and excluding the IO base pins is 69 mm tall.
References: Datasheet, 3002 & 1040. Type 5Y3GT was first introduced in 1936.



Pin Connections
IO
1
2
3
4
5
6
7
8
-
f
-
a(2)
-
a(1)
-
f



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
2.0
350
120
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 22, 2014.
