CV4001

Sensibly equivalent to:
CV493 CV4005 F/6063 VX7113

Extras ▼

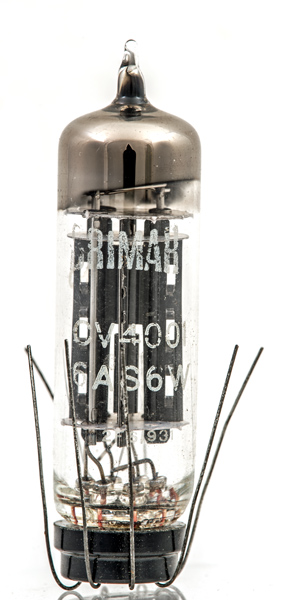

The CV4001 is the CV4005 fittied with flying leads. Both are 'reliable' versions of the commercial 6X4 full wave rectifier.
The envelope is also marked 6AS6W but this is a dual use of the Type designation as the 6AS6W is also used for a dual control pentode.

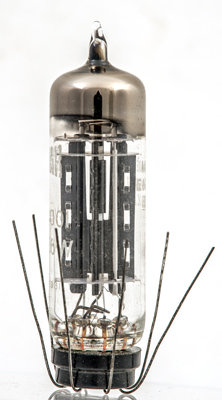

The anodes are mounted at right angles to one another on the common cathode.
Made in the UK and a clear view of the coated cathode.
The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 59 mm tall.
Reference: Datasheet.



Pin Connections
B7G
1
2
3
4
5
6
7
a(2)
-
h
h
-
a(1)
k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
6.3
0.6
325
70
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 01, 2014.
shape:thin.glass.tube construction:all.glass type:rectifier.fw age:1950.1960 base:b7g heater:6.3v pins:7 pin:1.a(2) pin:2.- pin:3.h pin:4.h pin:5.- pin:6.a(1) pin:7.k
