4242A

Sensibly equivalent to:
211 242C CV25 ES85 UE311
See also:
STC American Range Advert - CV25 short entry

Extras ▼



The STC 4242A triode is a near equivalent of the American Type 211A and is designed for audio power amplification. A single valve operated in Class A can produce 18 Watts without distortion. A pair in Class B, for public address amplifiers, would produce up to 200 Watts.

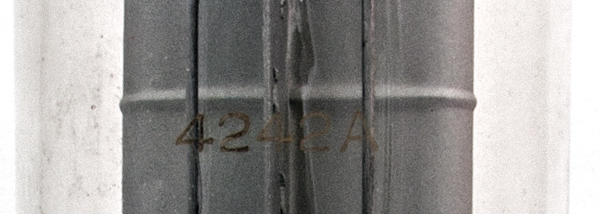

The envelope has the Type etched into the glass.

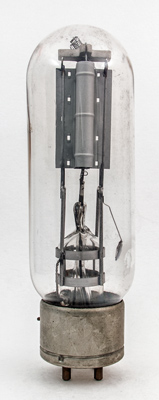

The support and heat sink flanges are in the centre of the working faces with the grid passing either side of the thoriated tungsten filament. The top support is ceramic and the odd angle of the filament tension springs is due to the fact that the filament is fractured in to several pieces.

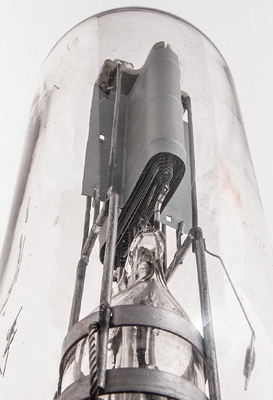

The main electrodes seen from the pinch. The filament would pass through the grid four times.
The wide glass tube envelope is 58 mm in diameter, and excluding the base pins is 180 mm tall.
Reference: Data-sheet. Type 4242A was first introduced in 1938. See also 1938 adverts.



Pin Connections
1
2
3
4
a
f
f
g1



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
10.0
3.25
1,250
-70
60.0
3,100
4.2
13
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 05, 2015.
