PL81

Sensibly equivalent to:
21A6 CV5077 N152 N359
See also:
Series Pass Valves - Valves and their Habits

Extras ▼

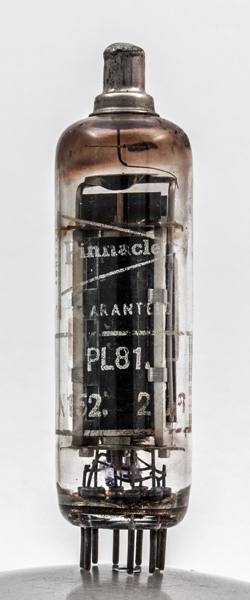

The PL81 was designed for universal mains sets without a mains transformer and with the heaters on a series chain.
The parameters given are for a pair in push pull audio service although the main purpose of the PL81 was as a television line output valve or a series pass element in stabilised power supplies.
As a line output valve in television service, the peak anode surge voltage is 7,000 Volts. The anode dissipation is 8 Watts.

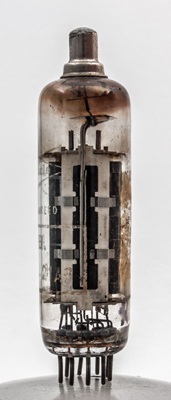

The anode is held in place by ceramic formers. The design is a beam tetrode and the beam plates are held in the mica supports.
The thin glass tube envelope is 21 mm in diameter and, excluding the B9A base pins, is 72 mm tall.
References: Datasheet & 1040. Type PL81 was first introduced in 1951.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
tc
ic
g1
k
h
h
ic
ic
g2
g3
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
Pout
D
21.5
0.3
200
200
-31.5
87
12.5
20W
5.5%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 03, 2015.
