PY33

Sensibly equivalent to:
PY32 U291

Extras ▼

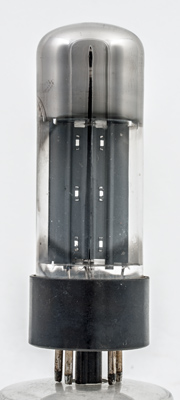

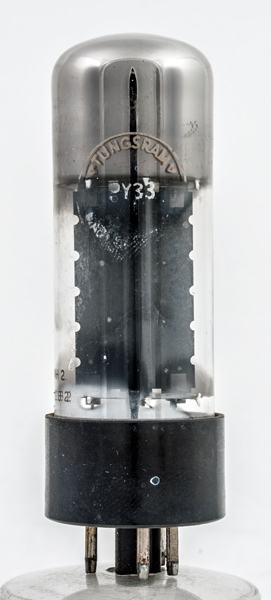

The PY33 is an HT rectifier for television receivers. It operates directly from the mains input and with a series resistance of 25 Ohms it will feed a reservoir capacitor of 200 µF. The 300 mA heater was the standard for TV receivers from the 1960s.
The advantage of the PY33 was a voltage drop across the valve of only 10 Volts made possible by an ultra smooth cathode coating.
The stitched anode was made with four heat radiating flanges in an X configuration.
The wide glass tube envelope is 32 mm in diameter, and excluding the IO base pins, is 94 mm tall.
References: Datasheet & 1040. Type PY33 was first introduced in 1961.



Pin Connections
IO
1
2
3
4
5
6
7
8
-
h
a
-
a
-
h
k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
29
0.3
250
325
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 01, 2019.
shape:wide.glass.tube construction:glass.foot type:rectifier.hw age:1960.1975 base:io heater:300ma pins:8 pin:1.- pin:2.h pin:3.a pin:4.- pin:5.a pin:6.- pin:7.h pin:8.k
