EZ90

Sensibly equivalent to:
6X4 CV493 U78

Extras ▼



The EZ90 miniature HT rectifier follows the normal pattern for a full wave device in that a common cathode is employed.
The data-sheet gives the intended use as compact power supplies such as would be found in car radios.

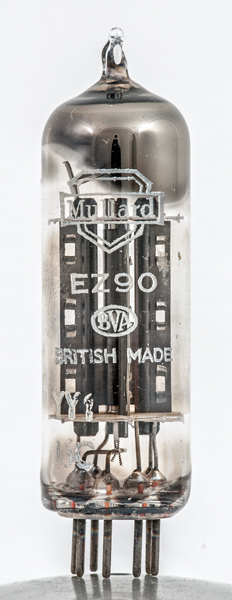

The central cathode with the anodes stacked around it.
The lower anode is seen face on and the top anode is seen edge on.
The thin glass tube envelope is 18 mm in diameter and the length, excluding the B7G base pins, is 58 mm.
References: Datasheet & 1040.



Pin Connections
B7G
1
2
3
4
5
6
7
a(2)
-
h
h
-
a(1)
k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
6.3
0.6
325
70
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 04, 2019.
shape:thin.glass.tube construction:all.glass type:rectifier.fw age:1930.1940 base:b7g heater:6.3v pins:7 pin:1.a(2) pin:2.- pin:3.h pin:4.h pin:5.- pin:6.a(1) pin:7.k
