The Type 30 is a general purpose amplifier triode. It is directly heated for use with battery supplies. The 2.0 Volt filament was for use with a lead-acid accumulator.

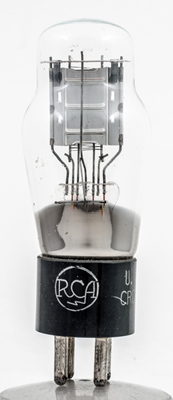

The RCA logo on the base cap.

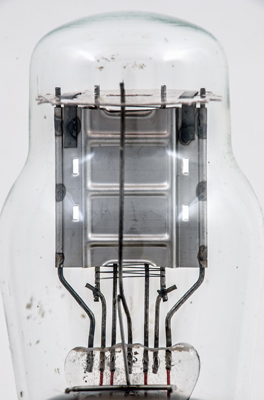

The bright anode with the grid extending below. the central vertical support holds the filament tensioning spring.

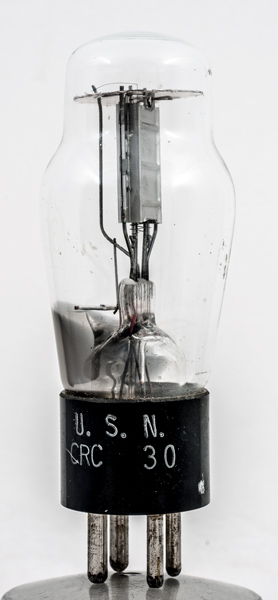

The classic envelope is 38 mm in diameter and, excluding the UX4 base pins, is 90 mm tall.
Reference: Datasheet. Type 30 was first introduced in 1936.



Pin Connections
UX4
1
2
3
4
f
a
g1
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
2.0
0.06
180
-13.5
3.1
10,300
0.9
9.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
