6AC7Sensibly equivalent¶ to:1852 6AJ7 CV660 CV747 CV846 CV849 VT-112See also:
|
|
|
The 6AC7 American metal pentode was designed for high gain amplification. Since it has a sharp cut-off it is unsuitable for domestic radios with AVC. The intended application is as an IF or video amplifier for wide-band receivers, e.g. radars. Bearing in mind that the RCA design of metal valves was pinch-less and had very short lead-outs well shielded from each other by the metal envelope, Type 6AC7 can be thought of as the American answer to the EF50. It consumed 50% more heater power but provided 50% more gm as a result. It was used in enormous numbers in American WWII equipments. Presumably the accessible suppressor grid might be used to 'gate' the signal output if required.See also 6AJ7 that has identical details.![](../pics/aaq0626a.jpg)

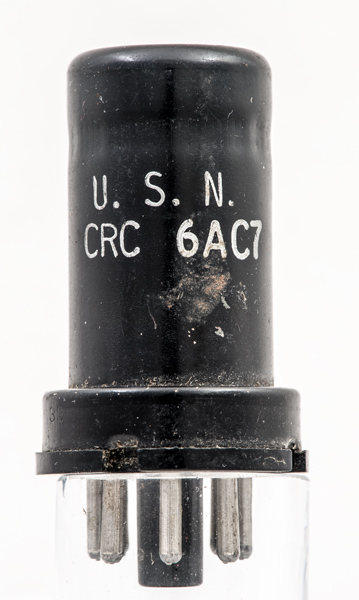

The RCA logo.The thin metal tube envelope is 25 mm in diameter and excluding the IO base pins, is 50 mm tall.References: Data-sheet & 1040. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ![](../static/key.gif) m | h | g3 | g1 | k | g2 | 7 | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | rk | ra | gm | ![](../static/pdflogo.gif)
| 6.3 | 0.45 | 300 | 150 | -2 | 10 | 2.5 | 160 | 1M | 9 |
|
Updated July 02, 2021.
|
|
