6AU6

Sensibly equivalent to:
6AU6A 6AU6WA 6AU6WB 6AU6WC 6J4P 6P2 CV2524 EF94

Extras ▼

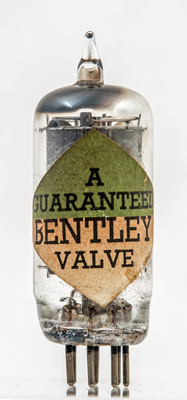

The 6AU6 is an RF pentode for use up to 50 MHz. Bentley were a reseller not a maker. The Type designation is seen etched within an octagon on the glass - probably this was made by RCA.

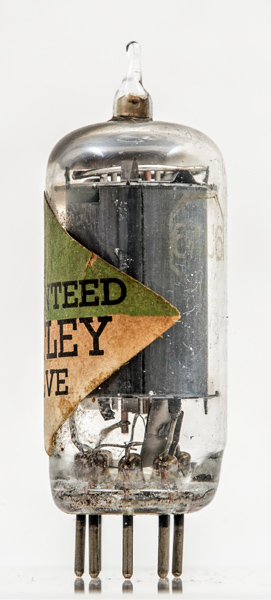

The Bentley paper sticker discoloured by heat.

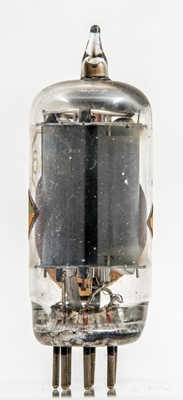

The anode lead is shielded to the base pin and the control grid is wound on copper supports.
The thin glass tube envelope is 18 mm in diameter and excluding the B7G base pins the valve is 46 mm tall.
References: Data-sheet & 4054. Type 6AU6 was first introduced in 1946. See also 1946 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
g3,s
h
h
a
g2
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
150
-6.5
10.6
4.3
1.0M
5.2
PDF scanned from an original document held by the museum
