6J7Sensibly equivalent¶ to:See also:
|
|
|

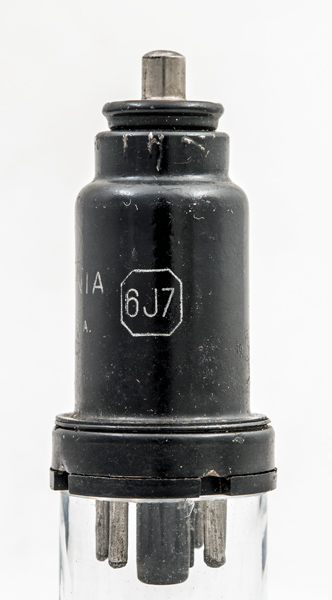

Type 6J7 is a contemporary of the 'Magic Three' and almost as ubiquitous. Although originally designed as a detector its linear characteristic and good internal shielding (cf. 6Q7GT) made it a natural choice for audio. It was for two decades the international standard valve for audio amplifier input stages and audio systems.The Mullard-Philips type EF37A, for many years the standard British low-noise audio pentode, is really a 6J7G under another name. The predecessor valve was the Type 57 and the characteristics are the same.![](../pics/aaq0656a.jpg)

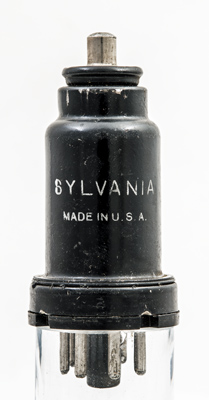

The Sylvania name and Made in USA.The thin metal tube envelope is 25 mm in diameter, and excluding the IO base pins, is 63 mm tall.References: Data-sheet, 1040 & 1043. Type 6J7 was first introduced in 1936. See also 1936 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | tc | ![](../static/key.gif) m | h | a | g2 | g3 | nc | h | k | g1 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | ![](../static/pdflogo.gif)
| 6.3 | 0.3 | 250 | 100 | -2 | 1.0 | 0.25 | 1.5M | 1.23 |
|
