6A7

Sensibly equivalent to:
CV1870
See also:
Pentagrid Converters

Extras ▼



The 6A7 is an American Pentagrid converter or heptode mixer. The 6A8 is the same valve electrically but on an IO base and the 12A8GT has a 12.6 Volt heater. The variants are: 6A7E and 6A7S.

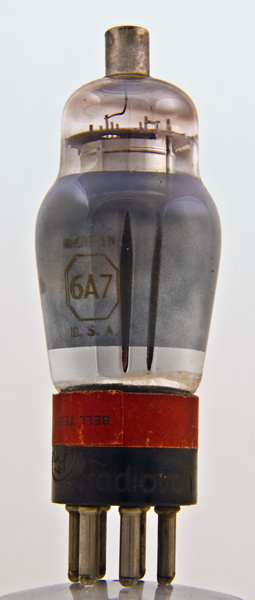

The red band around the base reads 'Bell Telephone Manf. Co. No. 8318A'. The etching on the glass also reads ADZAM. The base shows the real maker to be RCA.

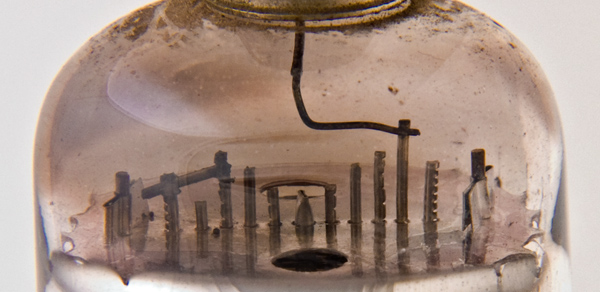

The supports protruding through the top mica show the electrode spacing. The tie rod on the left joins the two screen grids together (g3 + g5). The signal grid (g4) has a lead taken to the top cap. The spacing on the notched rods show the winding pitch. The support for g2 is not notched and in many cases this grid as anode would just be two vertical rods.
The classic envelope is 38 mm in diameter and, excluding the UX7 base pins, is 98 mm tall.
References: Datasheet, 1043 & 3002. Type 6A7 was first introduced in 1933.



Pin Connections
UX7
1
2
3
4
5
6
7
tc
h
a
g3,g5
g2
g1
k
h
g4



Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-3
3.5
2.7
0.36M
0.55
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December04, 2014.
