VR105/30

Sensibly equivalent^¶ to:

0C3 CV686 G105/1D GL-105/30 KD24 QS1206 W-269

Extras ▼

RCA The John Hodgson Collection Other VR105/30 exhibits

The VR105/30 is a voltage stabiliser. The striking voltage is 135 Volts and the regulation is 4.0 Volts for currents between 5 and 40 mA.

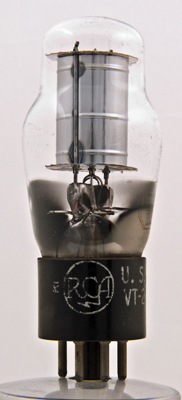

The RCA identification is on the black base and the type designation is etched into the glass envelope.

The top view indicates the simple construction of a central wire anode in a circular cathode tube.

The classic envelope is 38 mm in diameter, and excluding the IO base pins is 87 mm tall.

References: Data-sheet & ¹⁰⁴⁰. Type VR105/30 was first introduced in 1939. See also 1939 adverts.

Pin Connections

IO	1	2	3	4	5	6	7	8
	nc	k	ic	nc	a	nc	ic	nc

Absolute Maximum Operating Conditions^¶

Stabiliser	Va	mAa
	105	40
